Key Features
Glass-Touch Display with Control Lock Function
Temperature Probe
SatinGlide Roll-Out Extension Rack
5.0 Cu. Ft. Capacity
EasyConvect Conversion System
Even-Heat Preheat
Self Cleaning Cycle
FIT System Guarantee
Even-Heat True Convection Oven
Documents

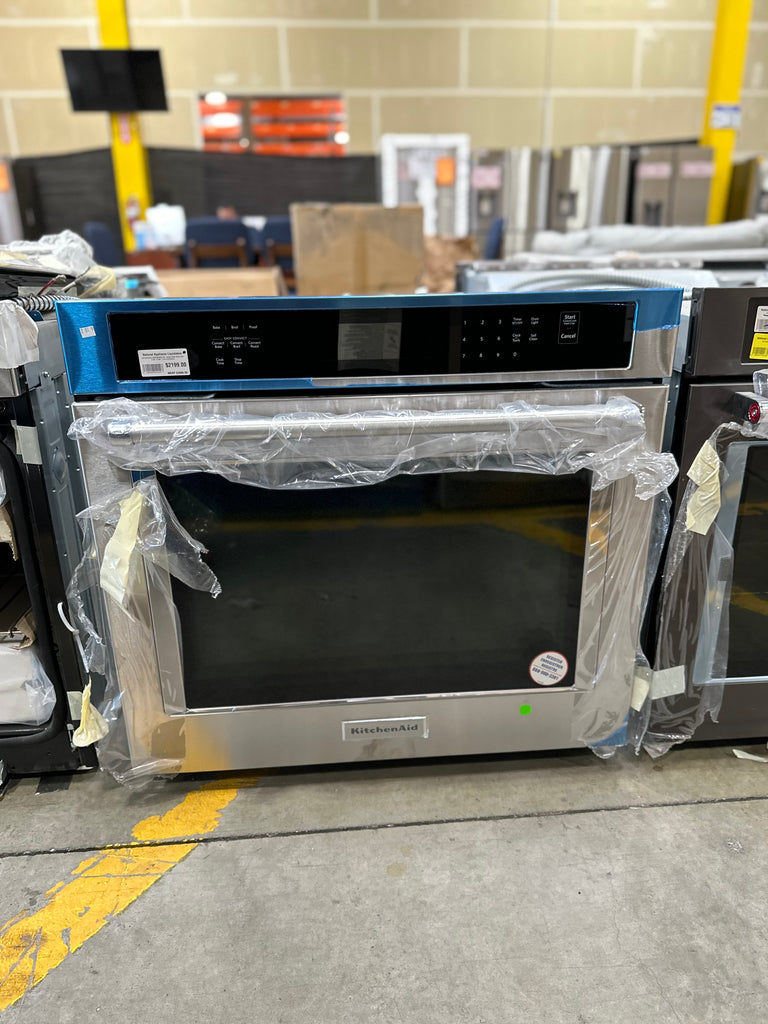

Wanting to impress your work friends with your cooking skill? The KitchenAid 30" Single Wall Oven with Even-Heatâ„¢ will be the perfect help for it . With a spacious 5.0 Cu. Ft. capacity, you'll have plenty of room to cook your favorite meals. The SatinGlideâ„¢ Roll-Out Extension Rack and Glass-Touch Display with Control Lock Function makes it easy to use and keep your oven clean. The EasyConvectâ„¢ Conversion System is a feature that automatically adjusts cooking times and temperatures for traditional recipes, so you don't have to do any calculations or guesswork. It ensures that your meals are cooked to perfection by providing optimal results for a variety of dishes. The Even-Heatâ„¢ Preheat ensures that the oven is heated evenly, so you don't have to worry about hot spots. The Even-Heatâ„¢ True Convection Oven circulates hot air throughout the oven for faster and more even cooking. This oven also comes with the FIT System Guarantee, ensuring that it will fit seamlessly into your existing cabinetry. The Self Cleaning Cycle makes it easy to keep your oven looking and working like new. Elevate your cooking life with the KitchenAid 30" Single Wall Oven with Even-Heatâ„¢ True Convection.
| Number of Boxes, Shipping Dimensions, & Shipping Weight | |
| Number of Boxes | 1 |
| Shipping Length | 32.13 in. |
| Shipping Width | 35 in. |
| Shipping Height | 33.75 in. |
| Shipping Weight | 209 lbs. |
| Total of Shipping Weight | 209 lbs. |
| Source | Calculation |
| Cubic Feet Measurement & Dimensional Weight | |
| Cubic Feet Measurement | 13.54 ft ³ |
| Total of Cubes | 13.54 ft ³ |
| Dimensional Weight | 168.31 lbs. |
| Total of Dimensional Weight | 168.31 lbs. |
| Description | |
| Fuel Type | Electric |
| Oven Type | Single |
| Size (in.) | 30 |
| Cooktop Combinations | KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569 |
| Exterior | |
| Door Lock | Yes |
| Door Removable | Yes |
| Door Type | Metal & Glass |
| Flush Installation Approved | Yes |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Installable Under Cooktop | Yes |
| Oven Window Size | Extra Large |
| Features | |
| Oven Selections | Clock, Control Lock, Delay Start, Proofing, Sabbath Mode, Star K, Temperature Probe, Time Bake, Timer |
| Controls | |
| Control Type | Glass Touch Digital Display |
| Display Color | White |
| Electronic Display Type | Digital |
| Language Conversion | English/French |
| LP Convertible | No |
| Temperature Conversion | Yes |
| Details | |
| Oven Automatic Shut-Off | Yes |
| Oven Capacity (cu.ft) | 5.0 |
| Bake Element Power | 2, 800 W |
| Hidden Bake Element | Yes |
| Number of Bake Elements | 1 |
| Broiler Element Power | 4, 000 W |
| Broiler Location | Top of Oven |
| Door Broil Position | Closed |
| Number of Broil Elements | 1 |
| Convection Element Power (watts) | 3, 200 |
| Convection Element Type | True |
| Convection Functions | Bake, Broil, Roast |
| Interior Coating | Porcelain |
| Interior Color | Blue |
| Light Control | Oven Light Touch Pad |
| Light Type | Halogen |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 6 |
| Oven Rack 1 Type | Standard |
| Oven Rack 2 Type | Standard |
| Oven Rack 3 Type | Gliding Roll-Out |
| Oven Interior Depth(IN,inches) | 19.000 |
| Oven Interior Height(IN,inches) | 18.000 |
| Oven Interior Width(IN,inches) | 25.000 |
| Oven Cleaning Type | Adjustable Self Cleaning |
| Self-Cleaning Oven Racks | No |
| Certifications | |
| CUL | Yes |
| Prop 65 | Standard |
| UL | Yes |
| Oven Cooking System | Convection |
| Specifications | |
| Width Doors Open 90 Degrees | 46.750 |
| ADA Compliant | No |
| Energy Rating (kWh/year) | 356 |
| Electrical | |
| Amps | 20 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
| Accessory Relationships | Yes |
| Configuration | |
| Oven Configuration | Single Oven |
| Rack Guide Type | Molded |
| Style | Wall Ovens |
| EasyConvectâ„ ¢ Conversion | EasyConvectâ„ ¢ Conversion |
| Even-Heatâ„ ¢ Preheat | Even-Heatâ„ ¢ Preheat |
| Even-Heatâ„ ¢ True Convection | Even-Heatâ„ ¢ True Convection |
| FIT System | FIT System |
| SatinGlideâ„ ¢ Roll Out Extension Rack | SatinGlideâ„ ¢ Roll Out Extension Rack |
| Self Clean | Self Clean |
| Refinement KAD | |
| Temperature Probe | Temperature Probe |
| Dimensions & Weight | |
| Width | 30 in. |
| Height | 28.75 in. |
| Length | 27.13 in. |
| Weight | 169 lbs. |
| Capacity (Cu Ft) | 5.00 |
| Carton Depth | 30 13/16 |
| Carton Height | 30 3/4 |
| Carton Width | 34 13/16 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 28 |
| Cutout Width (in) | 28 1/2 |
| Depth Closed Excluding Handles | 24 1/2 |
| Depth With Door Open 90 Degree | 46 3/4 |
| Gross Weight | 161 |
| Net Weight | 156.0 |
| Capacity(FT3,cubic feet) | 5.00 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 28.0000 |
| Cutout Width(IN,inches) | 28.5000 |
| Depth Closed Excluding Handles(IN,inches) | 24.5000 |
| Depth With Door Open 90 Degree(IN,inches) | 46.7500 |
| Carton Depth(IN,inches) | 30.8125 |
| Carton Height(IN,inches) | 30.7500 |
| Carton Width(IN,inches) | 34.8125 |
| Cutout Height Min(IN,inches) | 28.0000 |
| Gross Weight(LB,pounds) | 169 |
