Key Features
Retractable Downdraft Design
585 CFM Motor Class Ventilation System
65,000 BTU Rating
4-Speed Slide Control
13.5" Rise
Mesh Filters
Reversible Motor Box
36" Retractable Downdraft System
Documents

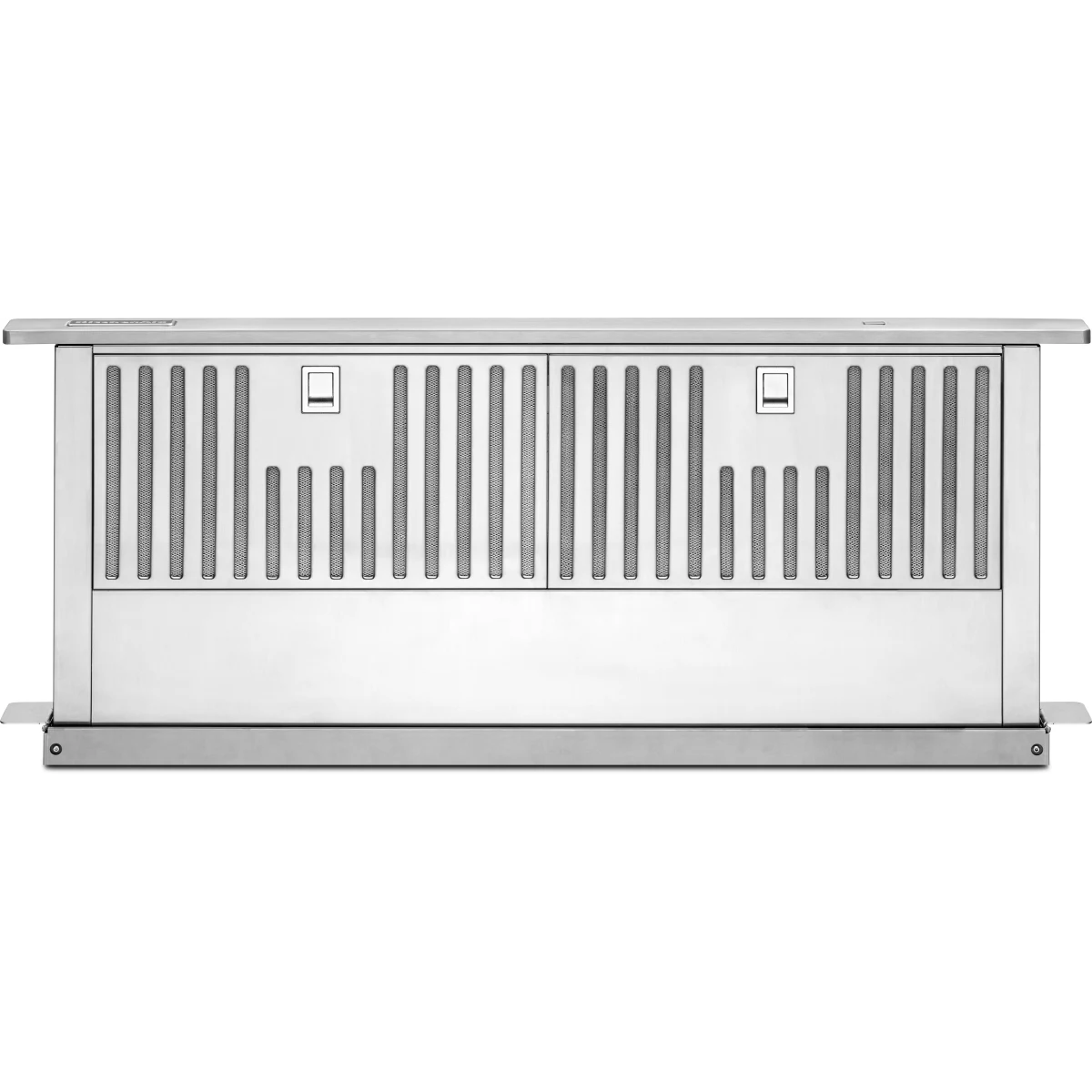

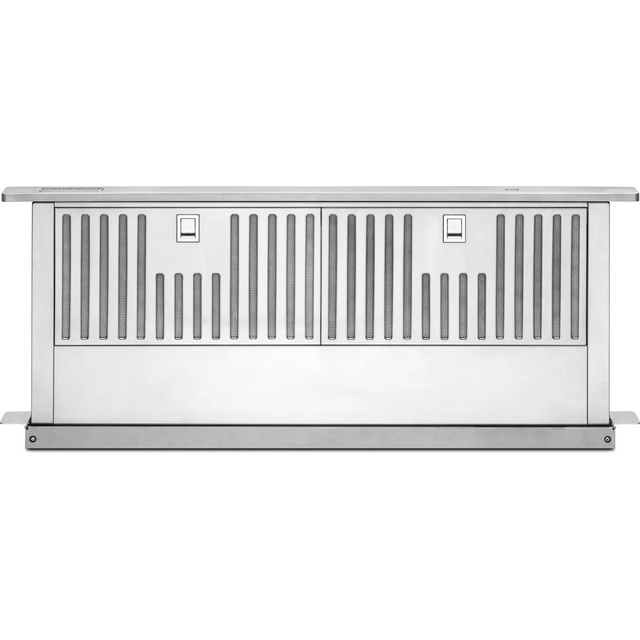

KitchenAid 36" Downdraft Hood with 13.5" Rise and Mesh Filters
| Number of Boxes, Shipping Dimensions, & Shipping Weight | |
| Number of Boxes | 1 |
| Shipping Length | 17.13 in. |
| Shipping Width | 38 in. |
| Shipping Height | 33.5 in. |
| Shipping Weight | 140 lbs. |
| Total of Shipping Weight | 140 lbs. |
| Source | Calculation |
| Cubic Feet Measurement & Dimensional Weight | |
| Cubic Feet Measurement | 6.6 ft ³ |
| Total of Cubes | 6.6 ft ³ |
| Dimensional Weight | 82.04 lbs. |
| Total of Dimensional Weight | 82.04 lbs. |
| Description | |
| Hood Type | Retractable Downdraft |
| Size (in.) | 36 |
| Details | |
| Material | Stainless Steel |
| Controls | |
| Control Location | Hidden |
| Control Type | Push Button |
| Ventilation System | |
| Blower Type | Centrifugal |
| CFM Motor Class | 585 |
| Duct Direction | Vertical |
| Duct Outlet Size (in.) | 6 |
| Duct Type | Round |
| Filters | Grease Filters |
| Number of Vent Speeds | 10 |
| Sound Max Speed (Sones) | 7.9 |
| Venting | Exterior |
| Certifications | |
| Prop 65 | Standard |
| UL | Yes |
| Electrical | |
| Amps | 15 |
| Hz | 60 |
| Volts | 120 |
| Specifications | |
| Accessory Relationships | Yes |
| Style | Hoods |
| Auto Turn On | Auto Turn On |
| Cook Up The Savings | Cook Up The Savings |
| Series | Specialty Series |
| Dimensions & Weight | |
| Width | 33 in. |
| Height | 28.5 in. |
| Length | 12.13 in. |
| Weight | 100 lbs. |
| Carton Depth | 39 1/2 |
| Carton Height | 21 |
| Carton Width | 35 |
| Gross Weight | 100 |
| Carton Depth(IN,inches) | 39.5000 |
| Carton Height(IN,inches) | 21.0000 |
| Carton Width(IN,inches) | 35.0000 |
| Gross Weight(LB,pounds) | 100 |
